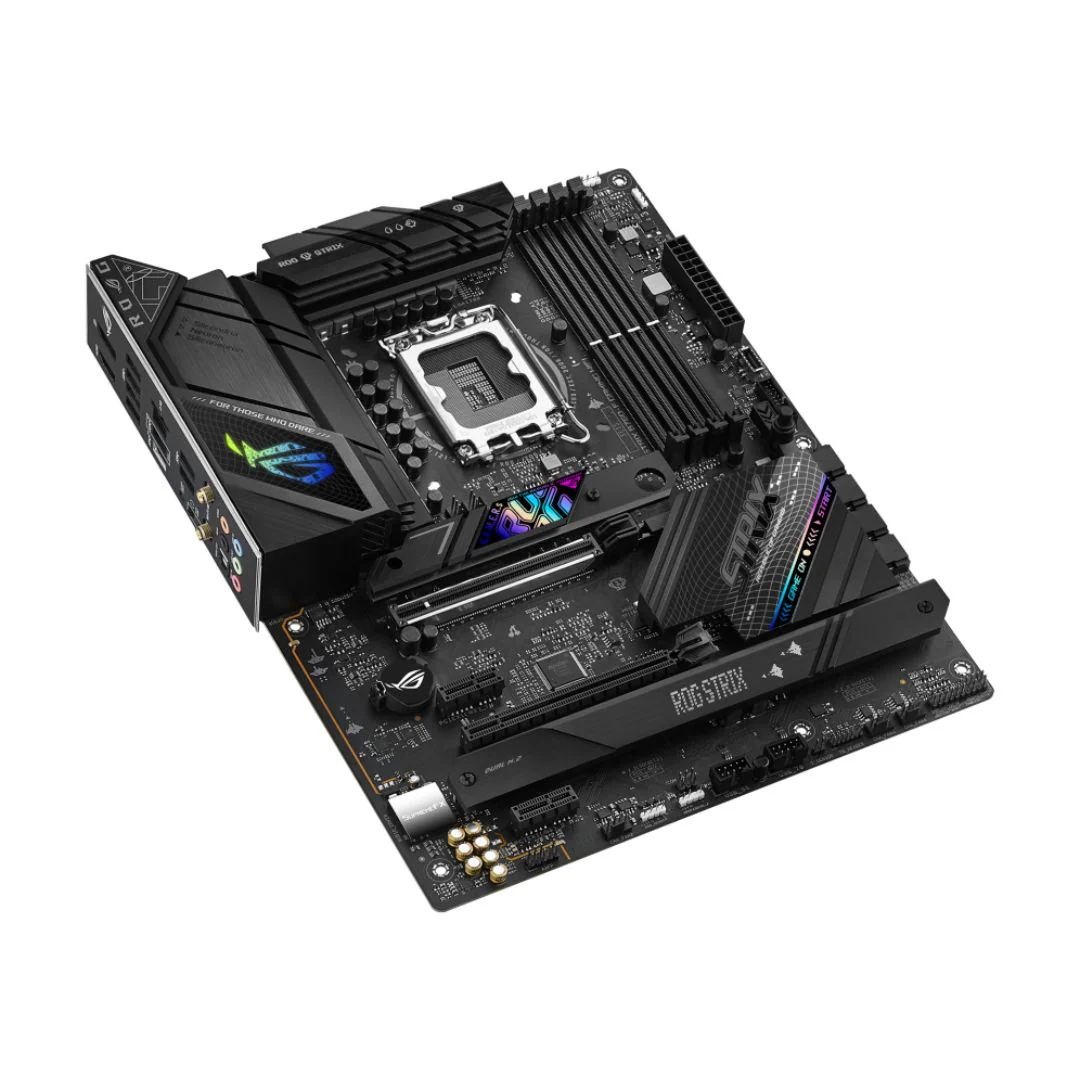

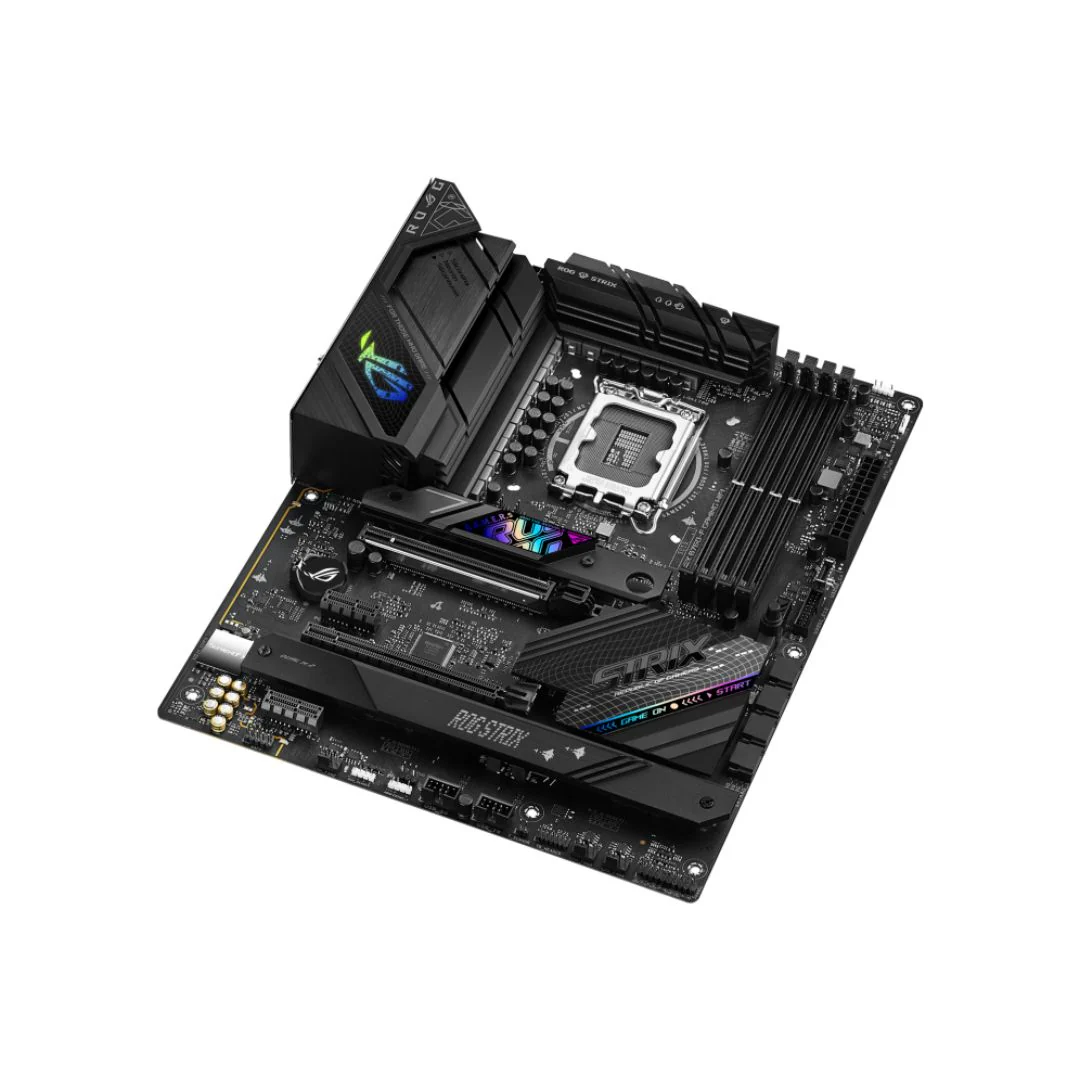

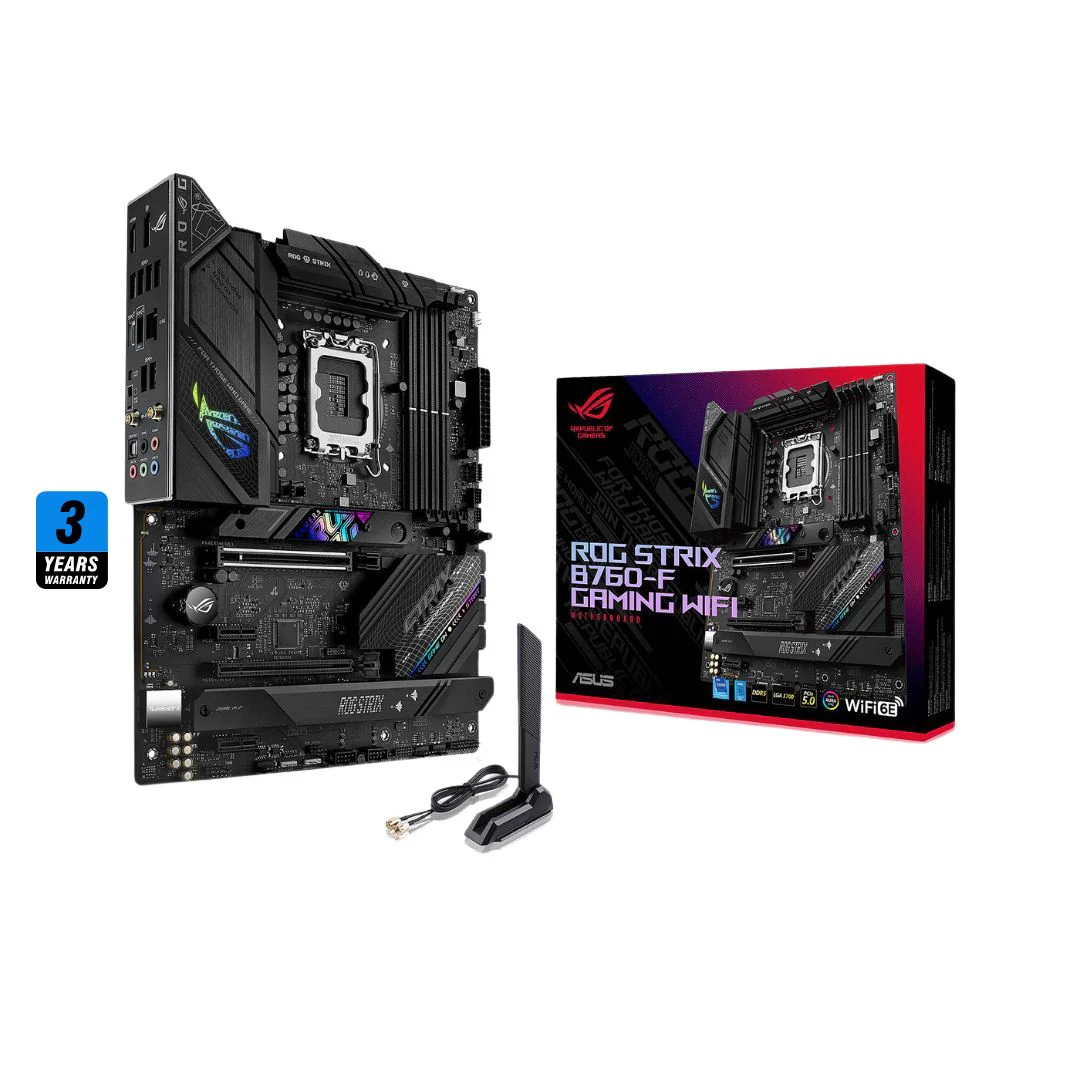

ASUS ROG STRIX B760-F GAMING WIFI

• Motherboard Specification
 • Model: ASUS ROG STRIX B760-F GAMING WIFI
 • Chipset: Intel B760
 • CPU Support:
  – Intel 14th / 13th / 12th Gen Core, Pentium Gold, Celeron (Socket LGA 1700)
 • Form Factor: ATX
 • Memory Support:
  – 4 × DDR5 DIMM slots
  – Up to 192GB total capacity
  – Up to 7800+ MT/s (OC)
  – Dual-channel architecture
  – Supports Intel XMP and AEMP II profiles
 • Expansion Slots:
  – 1 × PCIe 5.0 x16 (CPU)
  – 1 × PCIe 4.0 x16 (x4 mode)
  – 2 × PCIe 3.0 x1
 • Storage:
  – 3 × M.2 PCIe 4.0 x4 (NVMe only)
  – 4 × SATA 6Gb/s ports
 • Graphics Output:
  – 1 × HDMI 2.1
  – 1 × DisplayPort 1.4
 • Audio:
  – ROG SupremeFX 7.1 Surround Sound
  – ALC4080 codec + Savitech amplifier
 • Networking:
  – Intel Wi-Fi 6E (802.11ax)
  – Bluetooth 5.3
  – Intel 2.5Gb Ethernet with LANGuard
 • USB Ports:
  – Rear I/O:
   • 1 × USB 3.2 Gen 2x2 Type-C
   • 3 × USB 3.2 Gen 2 Type-A
   • 4 × USB 2.0
  – Internal Headers:
   • 1 × USB 3.2 Gen 2 Type-C
   • 2 × USB 3.2 Gen 1
   • 2 × USB 2.0
 • Internal Connectors:
  – 1 × 24-pin ATX
  – 1 × 8-pin + 1 × 4-pin CPU power
  – 6 × fan headers
  – 2 × ARGB headers
  – 2 × RGB headers
  – TPM, Thunderbolt header, front panel audio
 • DIY Features:
  – PCIe Q-Release
  – M.2 Q-Latch
  – BIOS FlashBack™
  – Q-LED diagnostic indicators
 • BIOS:
  – UEFI AMI BIOS with MemTest86
  – 256Mb Flash ROM
 • Software:
  – Armoury Crate, AI Networking, Two-Way AI Noise Cancelation
 • Dimensions: 305 × 244 mm
 • Color: Black with cyber-text accents
