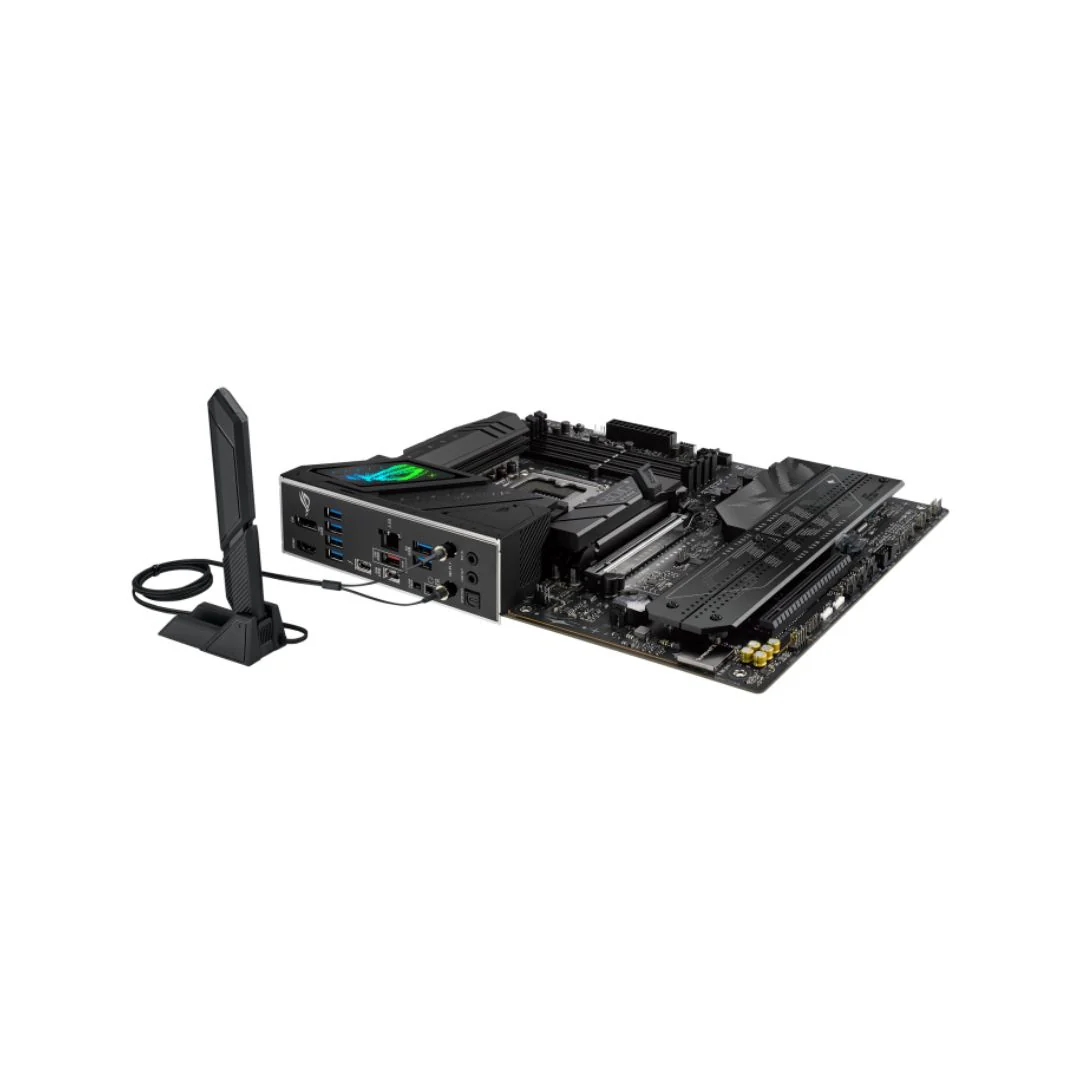

ASUS ROG STRIX B860-F GAMING WIFI , Motherboard

Motherboard Specification

• Model: ASUS ROG STRIX B860-F GAMING WIFI
• Socket: Intel LGA 1851 – supports Intel Core™ Ultra (Arrow Lake-S) processors
• Chipset: Intel B860
• Form Factor: ATX
• Memory Support:
– 4 × DDR5 DIMM slots (up to 256GB)
– Speeds: up to 9066+ MT/s (OC)
– Dual-channel architecture
– Supports Intel XMP & ASUS AEMP III profiles
• Expansion Slots:
– 1 × PCIe 5.0 x16 (CPU)
– 1 × PCIe 4.0 x16 (x4 mode, chipset)
• Storage Interface:
– 4 × M.2 slots:
• 1 × PCIe 5.0 x4 (2280)
• 1 × PCIe 4.0 x4 (22110)
• 2 × PCIe 4.0 x4 (2280)
– 4 × SATA 6Gb/s ports
• Networking:
– Intel 2.5Gb Ethernet
– Wi-Fi 7 (802.11be)
– Bluetooth 5.4

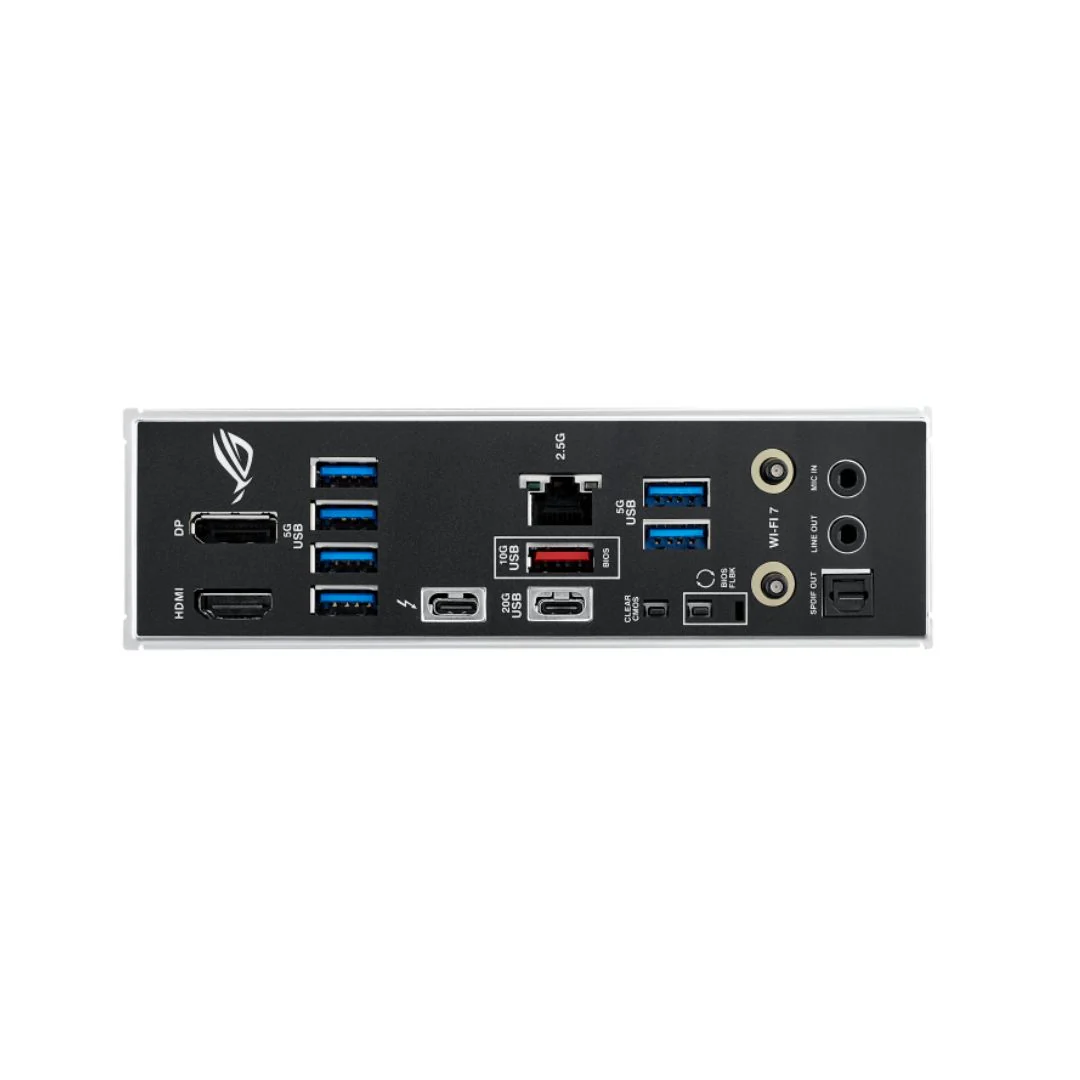

• USB Ports:
– Rear I/O:
• 1 × USB4 Type-C (40Gb/s)
• 1 × USB 3.2 Gen 2x2 Type-C (20Gb/s)
• 1 × USB 3.2 Gen 2 Type-A (10Gb/s)
• 6 × USB 3.2 Gen 1 Type-A (5Gb/s)
– Front I/O:
• 1 × USB 3.2 Gen 2 Type-C
• 2 × USB 3.2 Gen 1 Type-A
• 3 × USB 2.0
• Display Outputs:
– 1 × HDMI 2.1
– 1 × DisplayPort 2.1
• Audio:
– ROG SupremeFX 7.1-channel HD audio
– Savitech SV3H712 AMP
• Power Design:
– 16+1+2+1 power stages (80A)
– ProCool power connectors
• Cooling Features:
– Enlarged VRM heatsinks
– M.2 heatsinks
– Hybrid fan headers
– AI Cooling II
• RGB & Customization:
– Aura Sync RGB lighting
– Gen 2 addressable RGB headers
• Software Features:
– ASUS AI Advisor
– Armoury Crate
– AI Networking II
