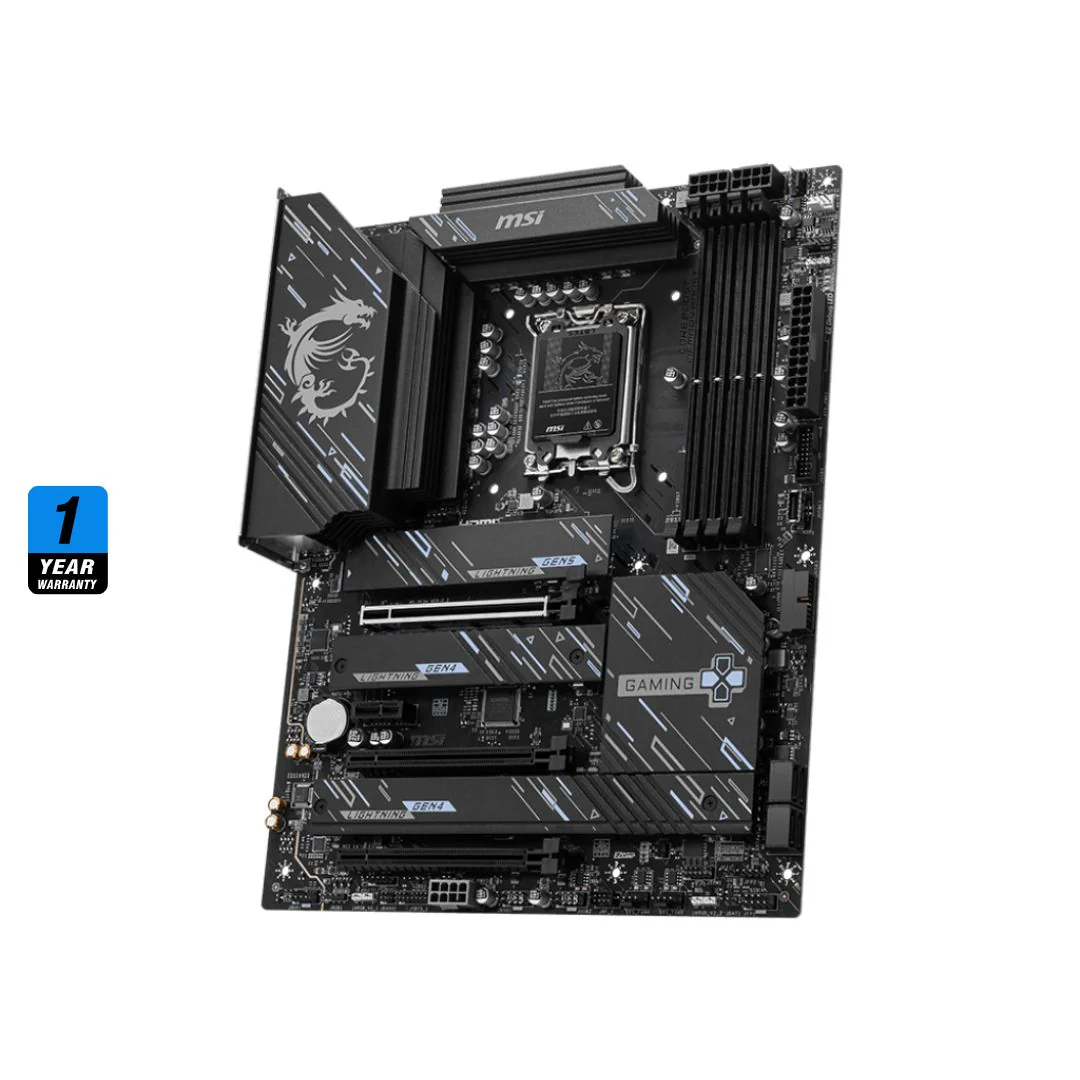

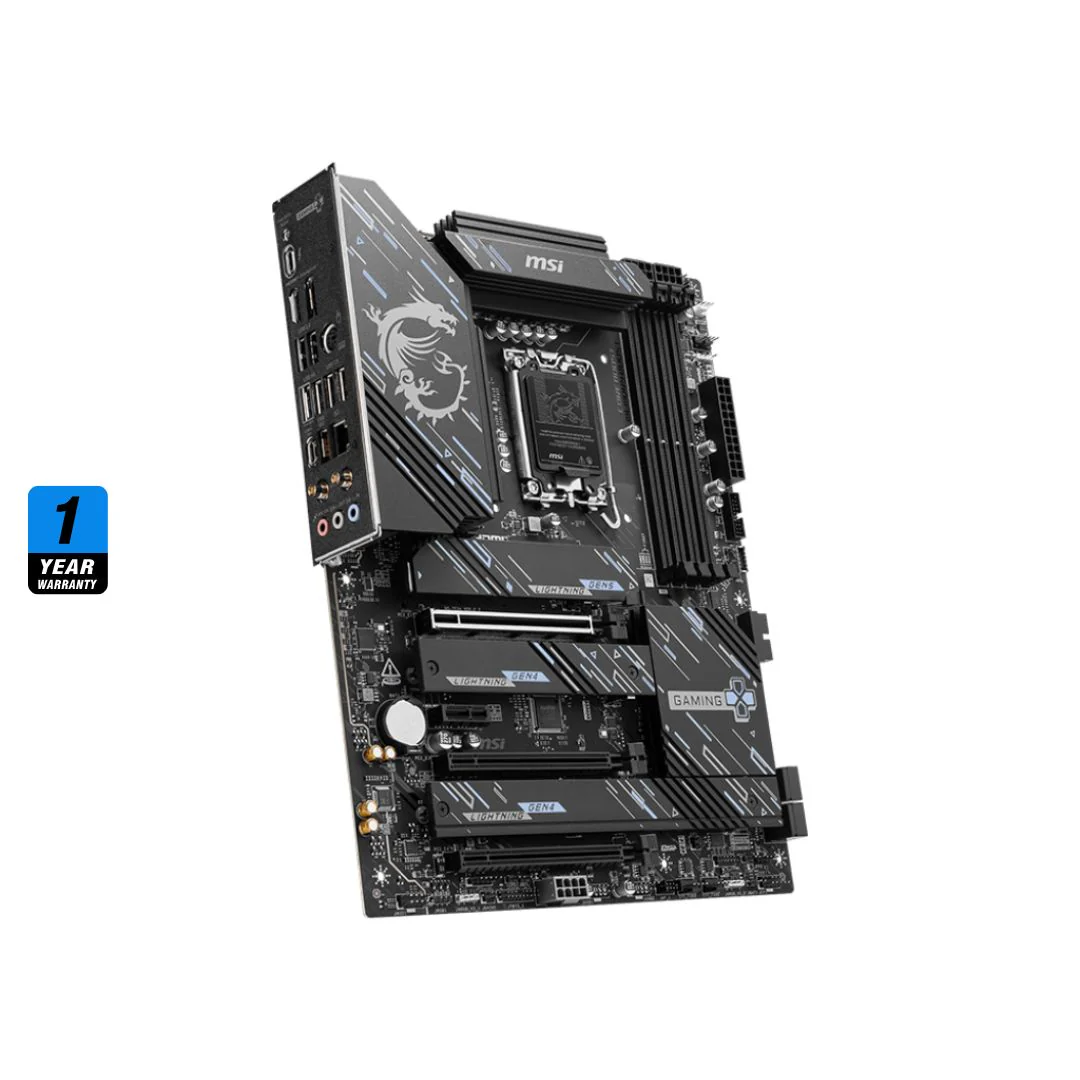

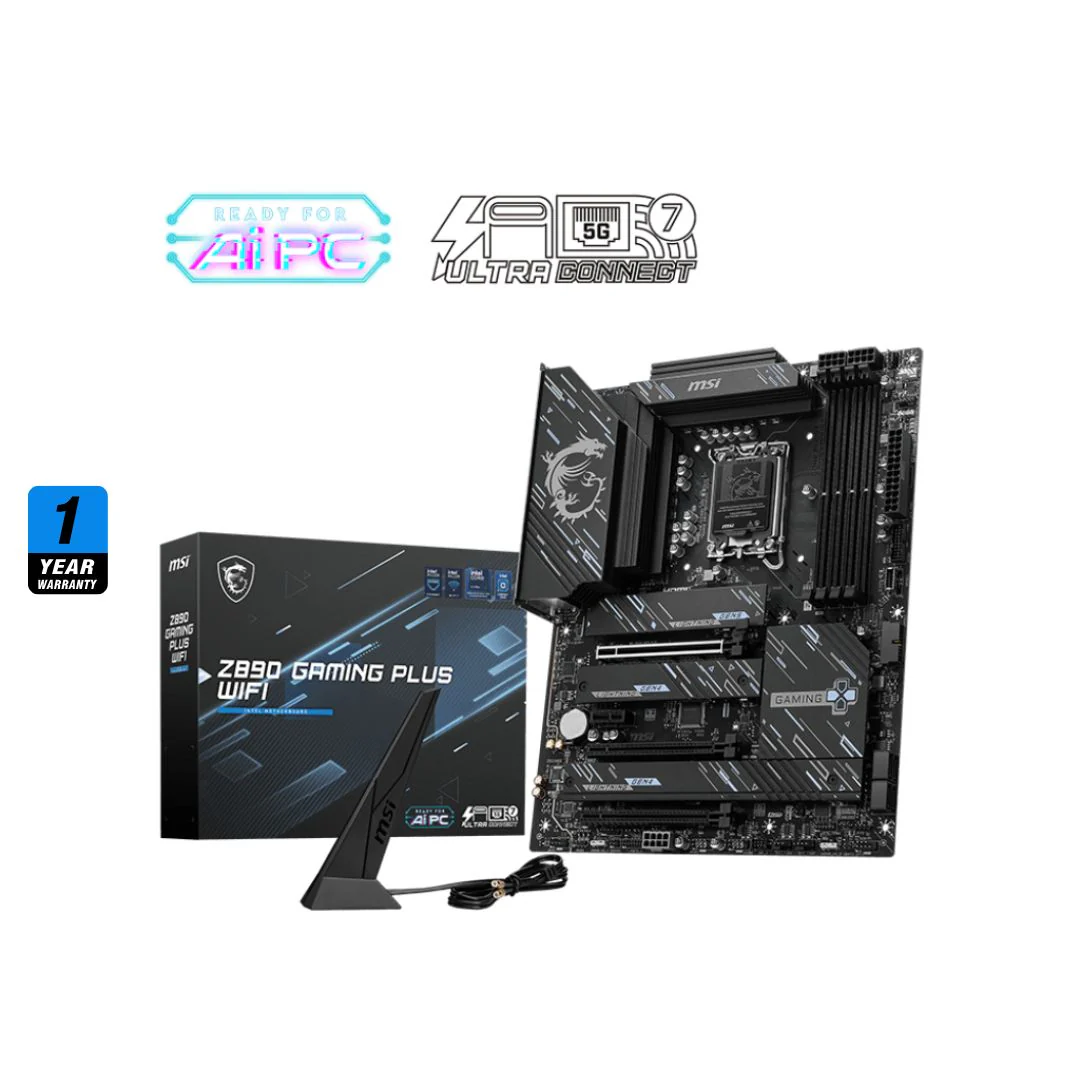

MSI Z890 GAMING PLUS WIFI , Motherboard

Motherboard Specification

• Chipset: Intel Z890
• Socket: LGA1851 – Supports Intel Core Ultra Series 2 processors
• Form Factor: ATX
• Memory Support: 4 x DDR5 DIMM slots, up to 256GB, up to 9200 MT/s (OC), Dual Channel, Intel XMP 3.0
• Graphics Outputs: 1 x HDMI 2.1, 1 x DisplayPort 1.4
• Audio: Realtek ALC897 – 7.1 Channel HD Audio
• Expansion Slots:
– 1 x PCIe 5.0 x16
– 1 x PCIe 4.0 x4
– 1 x PCIe 3.0 x1
• Storage:
– 4 x M.2 (1 x PCIe 5.0, 3 x PCIe 4.0/SATA)
– 4 x SATA III
– RAID 0/1/5/10 support
• Networking:
– Realtek 5GbE LAN
– Intel Wi-Fi 7
– Bluetooth 5.4
• USB Ports:

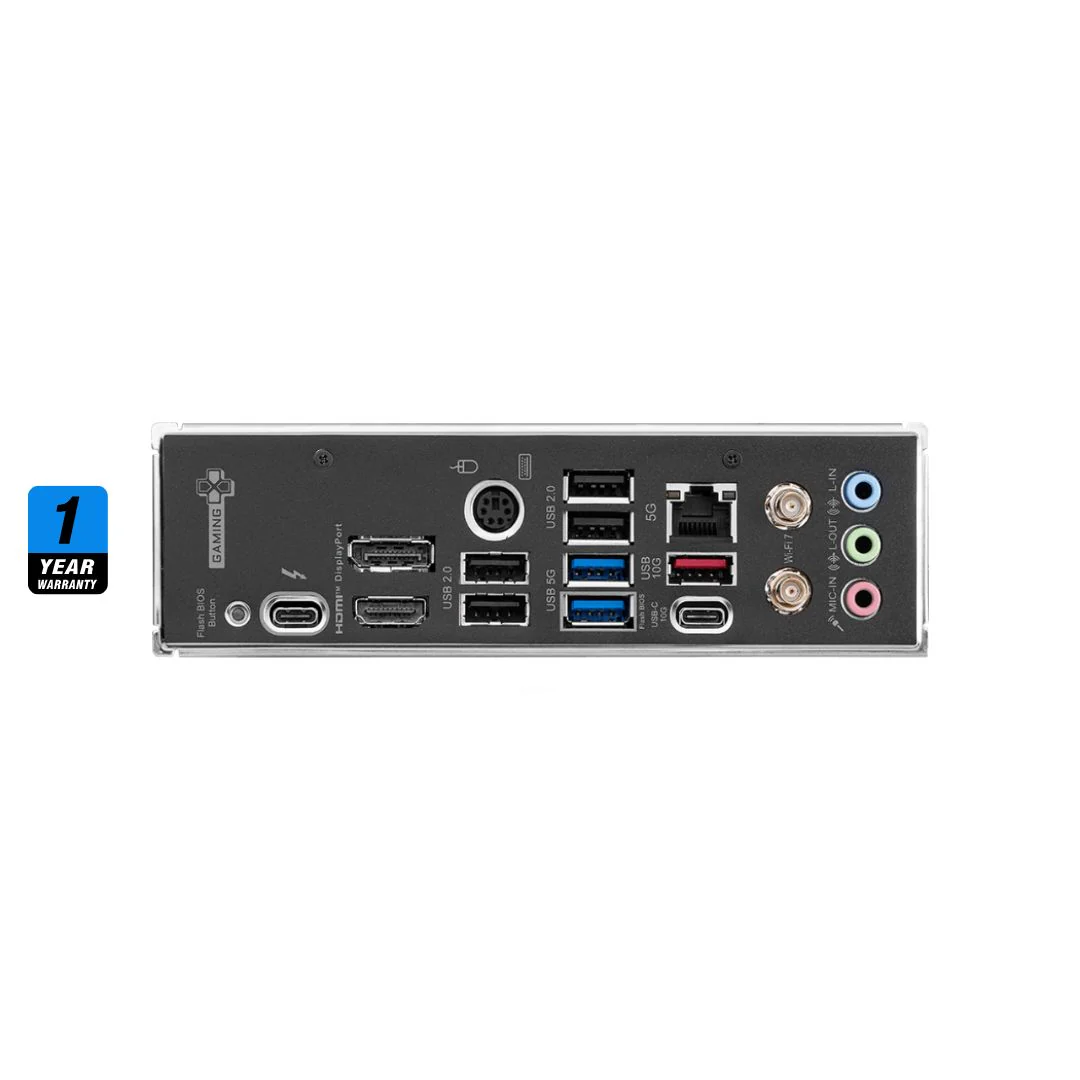

– Rear: USB 2.0, USB 5Gbps, USB 10Gbps, USB 20Gbps Type-C
– Internal: USB 2.0, USB 5Gbps, USB 20Gbps Type-C header
• Cooling & Features:
– Extended heatsinks, MOSFET thermal pads
– M.2 Shield Frozr
– EZ PCIe Clip II, Debug LED
• OS Support: Windows 11 / Windows 10 64-bit
